METAL SKIN series

Printable Labels to Bring

On/Off Metal Visibility to Industrial RFID Systems

Xerafy METAL SKIN series offers printable versatile On/Off Metal RFID labels that are engineered to perform for industrial systems.



Their award-winning design ensures the thinness and flexibility required for on-site printing and programming, using leading Industrial RFID printers/encoders from SATO and ZEBRA.

The UHF RAIN RFID labels and inlays are engineered to offer tagging solutions optimized to perform on different industrial surfaces, offering maximum flexibility in the deployment of complex systems:

  • 4 printing area sizes to incorporate barcodes and readable information

  • On-site printing and RFID programming with SATO, ZEBRA, PRINTRONIX...

  • RF performance optimized for metal and plastic surfaces

  • IP rating and industry-grade adhesive for extra ruggedness

  • Cost-efficient rolls, ready for high-capacity label converting, printing, encoding

  • An Off-Metal RFID Label for Gamma irradiation sterilization

  • An Off-Metal injection molding RFID Inlay for source-tagging by manufacturers and distributors

2012 HK RFID GS1 Award
2012 EuroID Award




XERAFY MERCURY METAL SKIN

BEAST PERFORMANCE

The Ultimate

High-Performance Label

The Xerafy Mercury Metal Skin is a best-selling Industrial RFID Label.
Working both On-Metal and Off, it offers a cost-effective RFID tag that is lightweight, flexible, and extremely low profile.

Operating with global RAIN RFID frequencies, it provides the best fit for international supply chains, while its size allows for printing human and computer-readable information such as barcodes and graphics.

Xerafy Mercury X50A0-GL100-M4

XERAFY DELTA METAL SKIN

FLEXIBLE PERFORMANCE

The Fully Flexibility

On-Metal Label

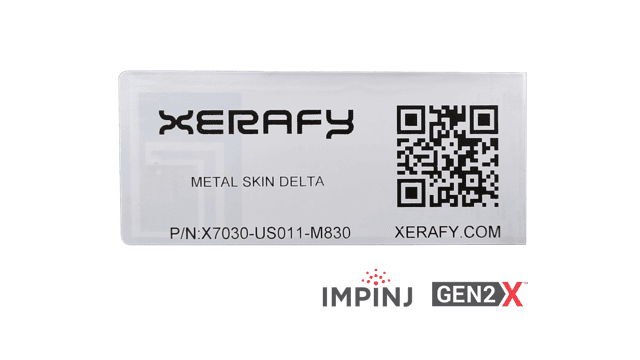

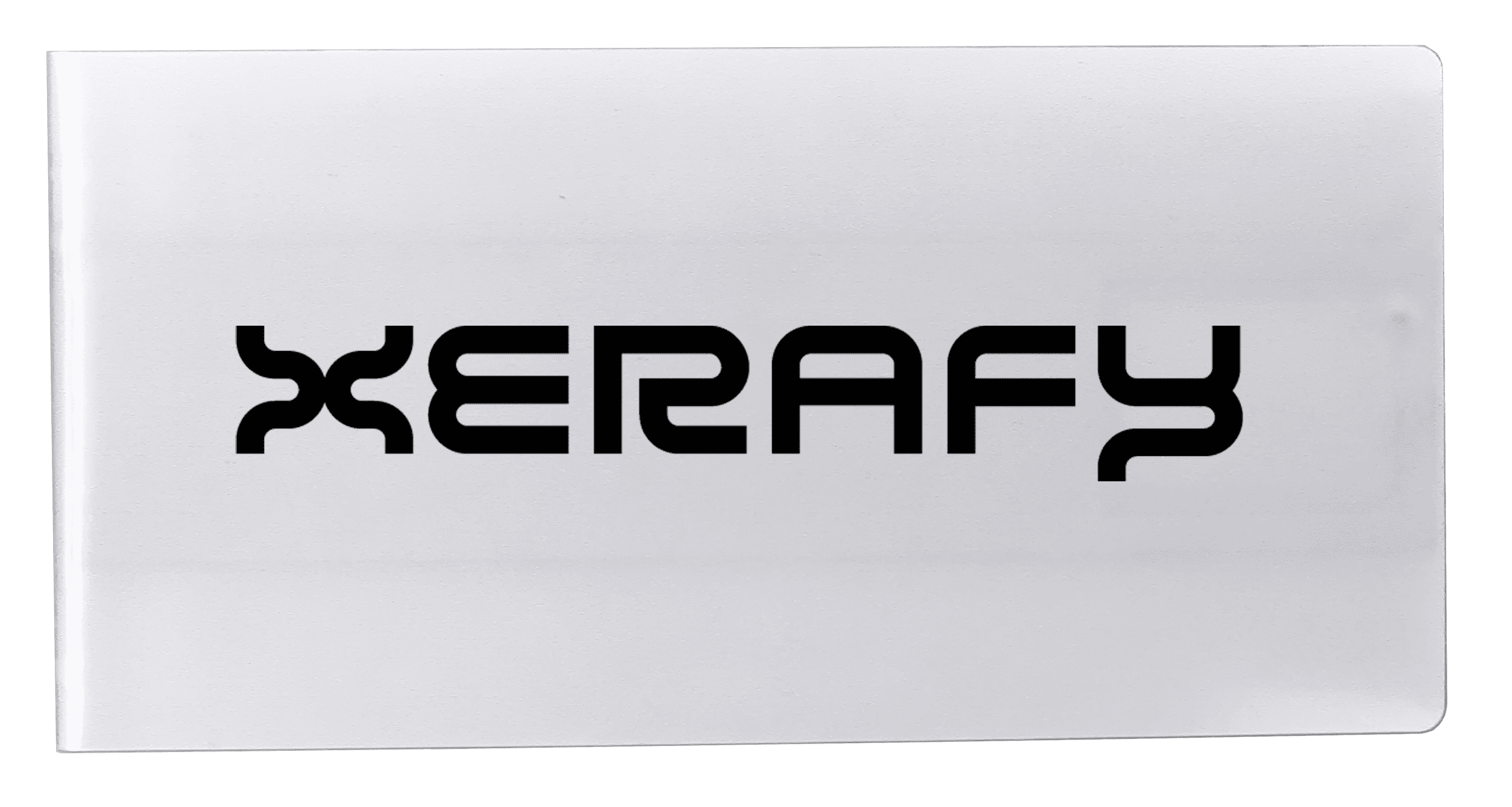

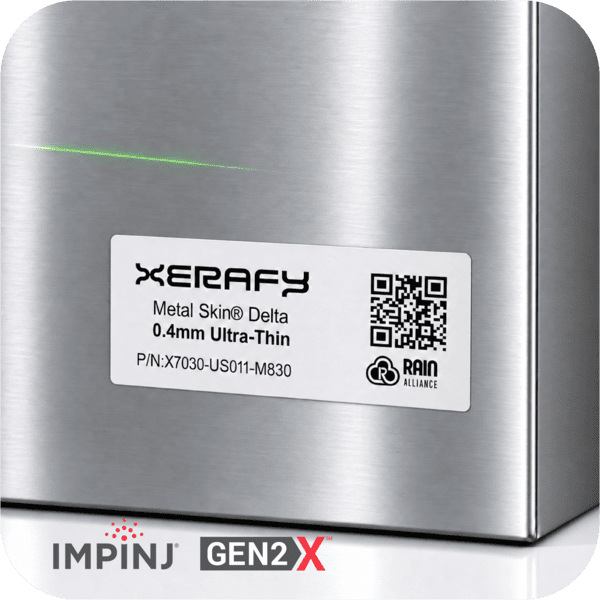

The Xerafy Delta Metal Skin is the most flexible on-metal RFID label, with a read range of 5 meters.
Flexible and printable, it comes with a high-performance adhesive.

Delta Metal Skin.png



XERAFY PLATINUM METAL SKIN

SUPERIOR PERFORMANCE

The Reference
High-Performance Labels

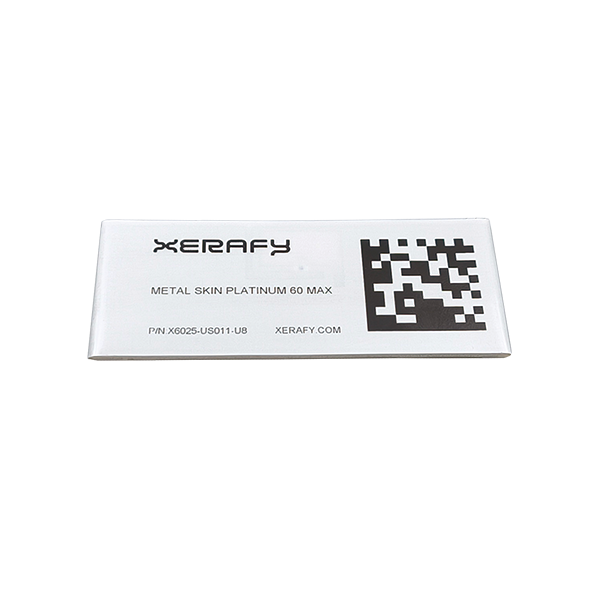

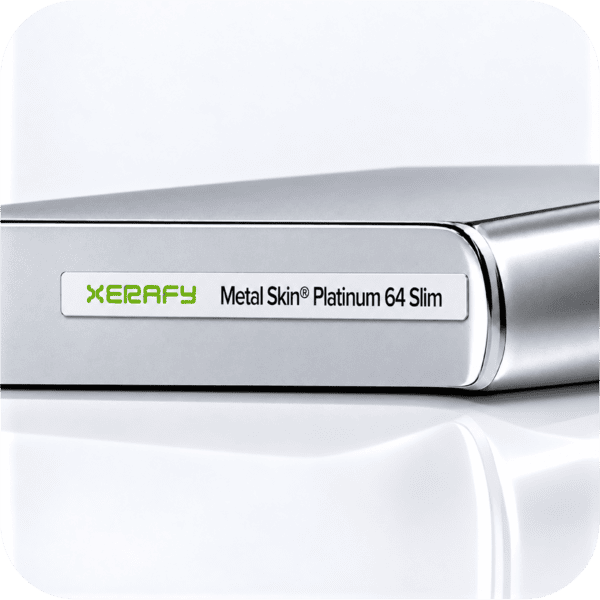

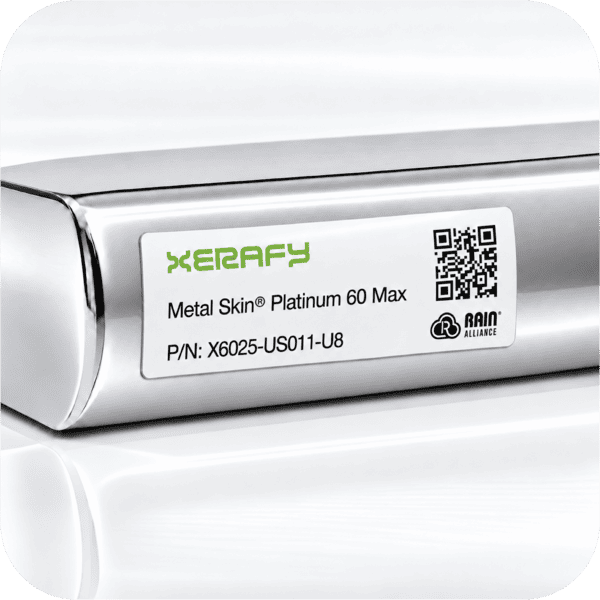

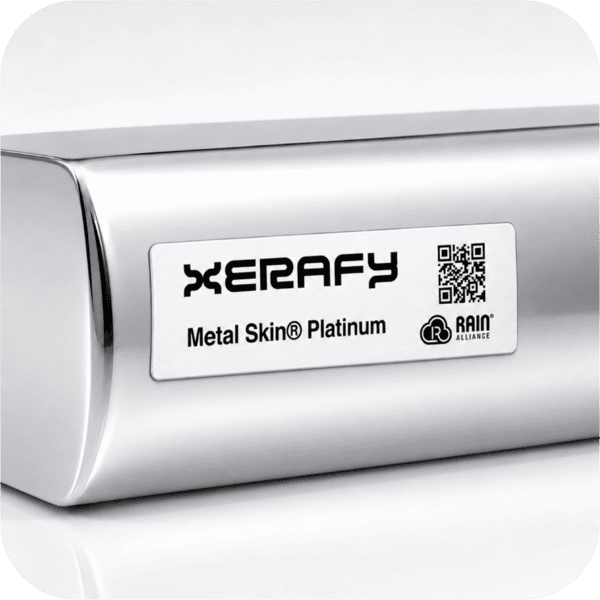

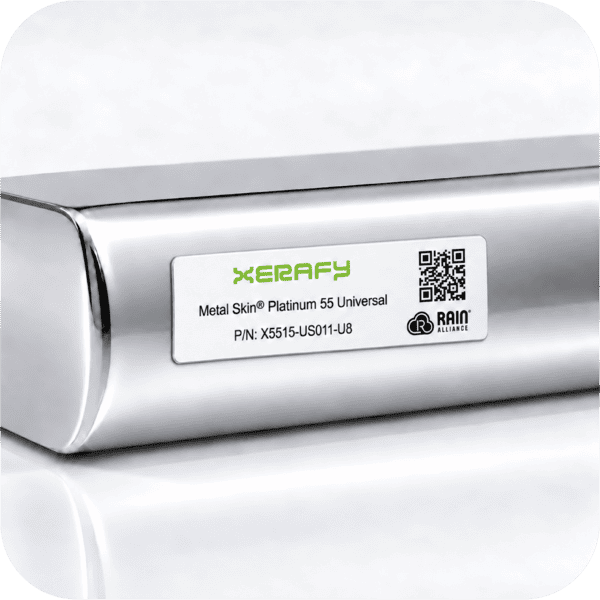

The Xerafy Platinum Metal Skin offers a market-leading read-range for Industrial RFID Labels.
Its superior design delivers industry-grade visibility, thanks to its thinnest profile, high-performance adhesive, and printable laminated material.

Xerafy Platinum X50A3-US011-R6P X50A3-EU011-R6P


XERAFY TITANIUM METAL SKIN

SENSIBLE PERFORMANCE

The Slimmest

High-Performance Label

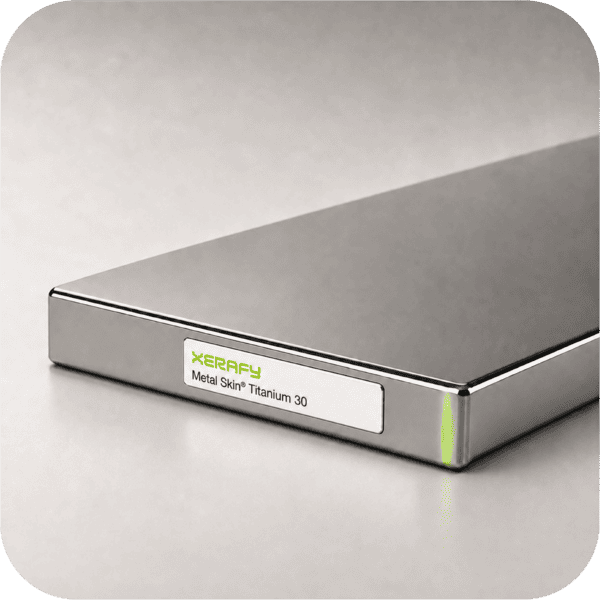

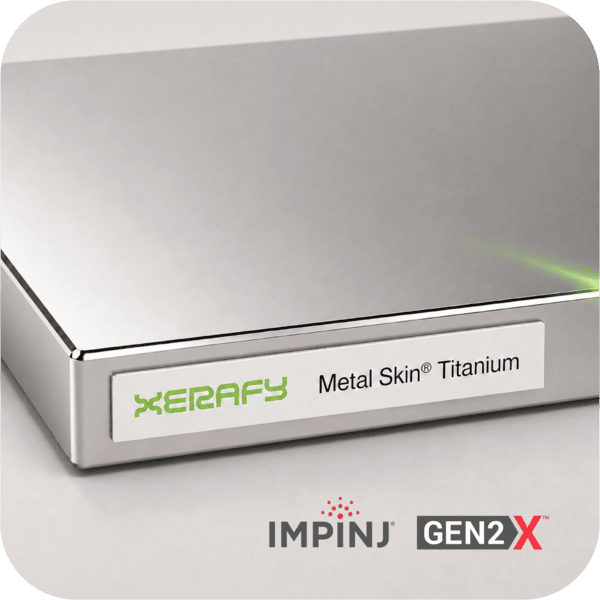

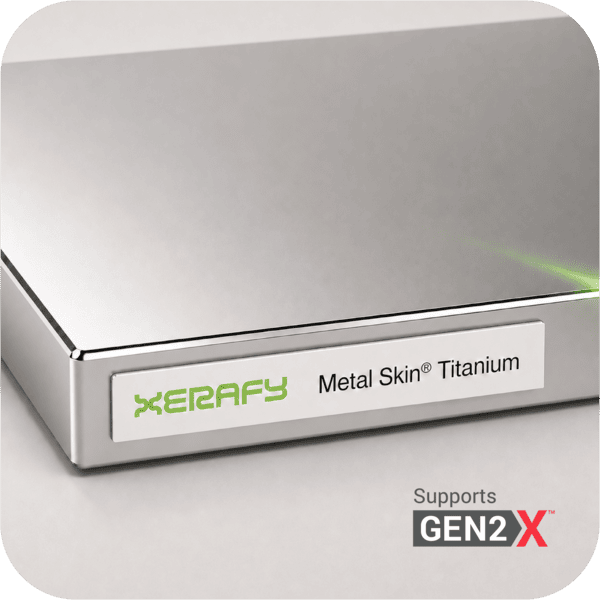

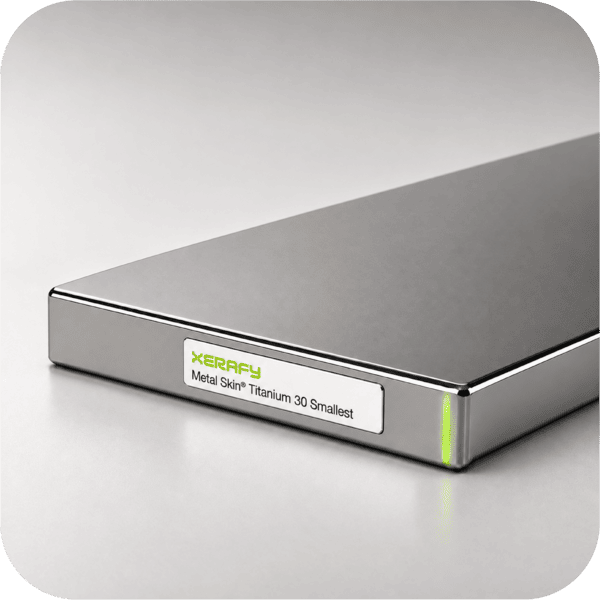

The Xerafy Titanium Metal Skin is an Industrial RFID Label engineered to track the smallest assets.
Working both On-Metal and Off, its industry-strength adhesive brings a cost-effective RFID tracking solution for a wide range of applications from IT assets to product authentication, high-value items, and medical supplies.

Xerafy Titanium X5020-US100-m5 X5020-EU100-M5


XERAFY GAMMA LABEL

UNIQUE PERFORMANCE

The Off-Metal Label For Irradiation

The Xerafy Gamma Label is designed to survive repeated e-Beam and Gamma irradiation sterilization.

An Off-Metal RFID Label, it delivers up to 3 meters read-range and operates at global RAIN RFID frequencies.
Available in two sizes to incorporate human-readable printing, as well as barcodes and graphics, its extremely low profile and flexibility make it the ideal tag for Medical Devices manufacturers.

Xerafy Gamma Label


XERAFY THETA INLAY

EXTREME PERFORMANCE

Off-Metal Inlay

For Injection Molding

The Xerafy Theta Inlay is designed for injection molding.
Operating at global RAIN RFID frequencies, it is thin and flexible, and survives temperatures of up to 230°C, making it the ideal solution for manufacturers and distributors looking for an RFID source-tagging solution.

Xerafy Theta Inlay


WHICH RFID SYSTEMS

The Xerafy METAL SKIN series of printable RFID labels and inlays provide flexible RF identification and tracking capabilities to Industrial Systems: Data Centers, IT Assets, Parts Management, Automated Warehouse, RTI Management, Injection Molding, Work-In-Process, Medical Devices, Medical Supplies​.

Xerafy Application Guide.png


HOW TO PRINT AND PROGRAM RFID LABELS

1. HOW WELL DO RFID LABELS PERFORM ON AND OFF METAL SURFACES?



Using RFID around metal assets can be tricky: Metal surfaces will be like mirrors, reflecting the energy emitted by RFID readers to power the tags, thus creating interferences. Metal assets, therefore, require the use of specialized RFID labels called on-metal or metal-mount labels. On-metal RFID labels are specifically designed to perform on metal surfaces by adding a spacer that creates a gap to shield the RF antenna from the metal. Most on-metal labels, in turn, perform poorly on non-metal surfaces such as plastics.



Xerafy METAL SKIN labels are engineered as versatile on/off metal RFID labels, optimized to perform well on metal surfaces and industrial plastics. When read on air or unattached onto a metal item, they can be read on both sides.

2. WHAT TO LOOK FOR WHEN SELECTING PRINTABLE ON-METAL RFID LABELS?

Most on-metal RFID labels available in the market are thicker than average due to the spacer used to shield the RF antenna from the metal surface. The extra thickness and rigidity make them hard to apply on assets and harder to feed in an on-site printer/encoder.

The Xerafy METAL SKIN labels' award-winning design allows for extremely thin and flexible profiles, delivering high performance on metal, plastics, and other industrial surfaces.

Besides thickness and printability, RFID labels will require industry-grade adhesives and durable material compatible with the application environment. RFID Systems that read the same tags in different countries with different frequency ranges will prioritize global frequency labels over regional frequencies.

3. WHAT IS THE BENDING RADIUS, HOW DOES IT AFFECT RFID READ RANGE?

A label's bend radius matters for curved surfaces and will depend on the label materials' overall thickness (including face stock material and adhesive). A consequence of bending an RFID label is that it will close its RF loop, resulting in shorten read distance performance.

Xerafy METAL SKIN labels are among the thinnest printable on-metal RFID labels available in the market, ensuring maximum adherence to surfaces. As a guideline, a label oriented horizontally would achieve 50% of its reference read-range performance with a minimum bending radius of 40mm (1.6in). Oriented vertically, the minimum bending radius would be 25mm (1in).

4. DO RFID LABELS COME ENCODED WITH UNIQUE EPC NUMBERS?

RFID Labels can be programmed with EPC numbers, either on-site or by the manufacturer. The information is stored in the label's TID memory bank and is retrieved with standard fixed or handheld readers operating at the same frequencies as the labels.

5. WHICH INDUSTRIAL PRINTERS TO USE FOR RFID LABELS?

RFID labels can be printed and programmed using industrial printers/encoders. Leading manufacturers include SATO, ZEBRA, TOSHIBA, POSTEK, PRINTRONIX.

The SATO CL4NX/Plus and ZEBRA ZT410/411/400 series are Industrial RFID thermal printers widely used in the field, with the printer settings adjusted to the label thickness.

6. HOW TO SET UP THE PRINTER AND THE LABELS?

The SATO x Xerafy User Guide provides step-by-step instructions for printing and encoding METAL SKIN labels on the CL4NX Plus.
